Marine

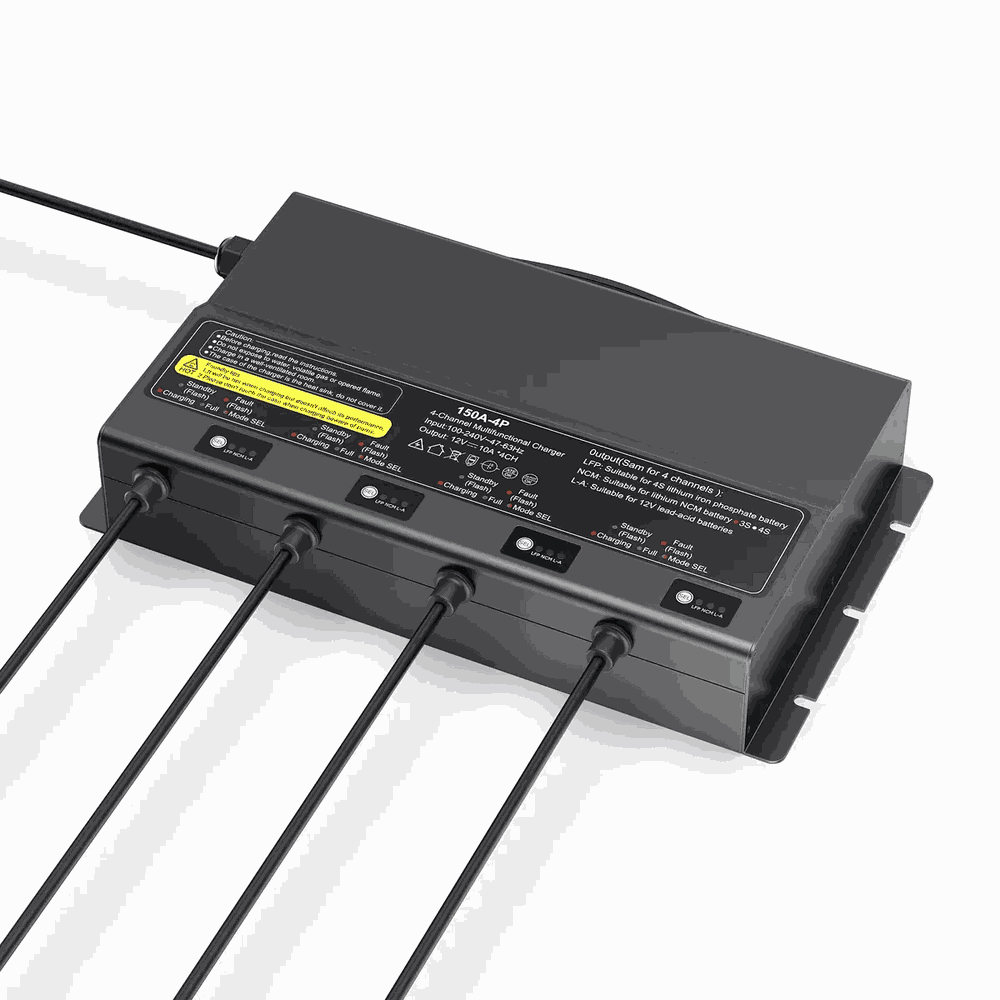

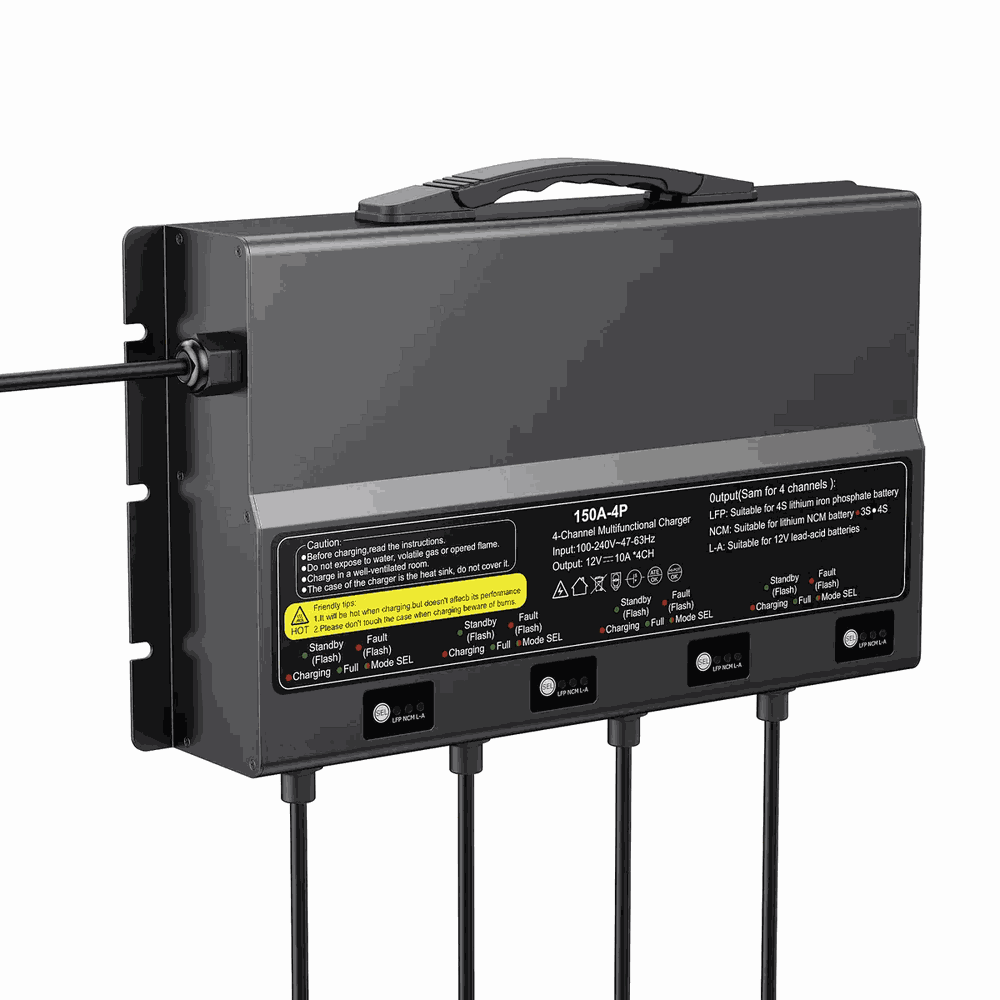

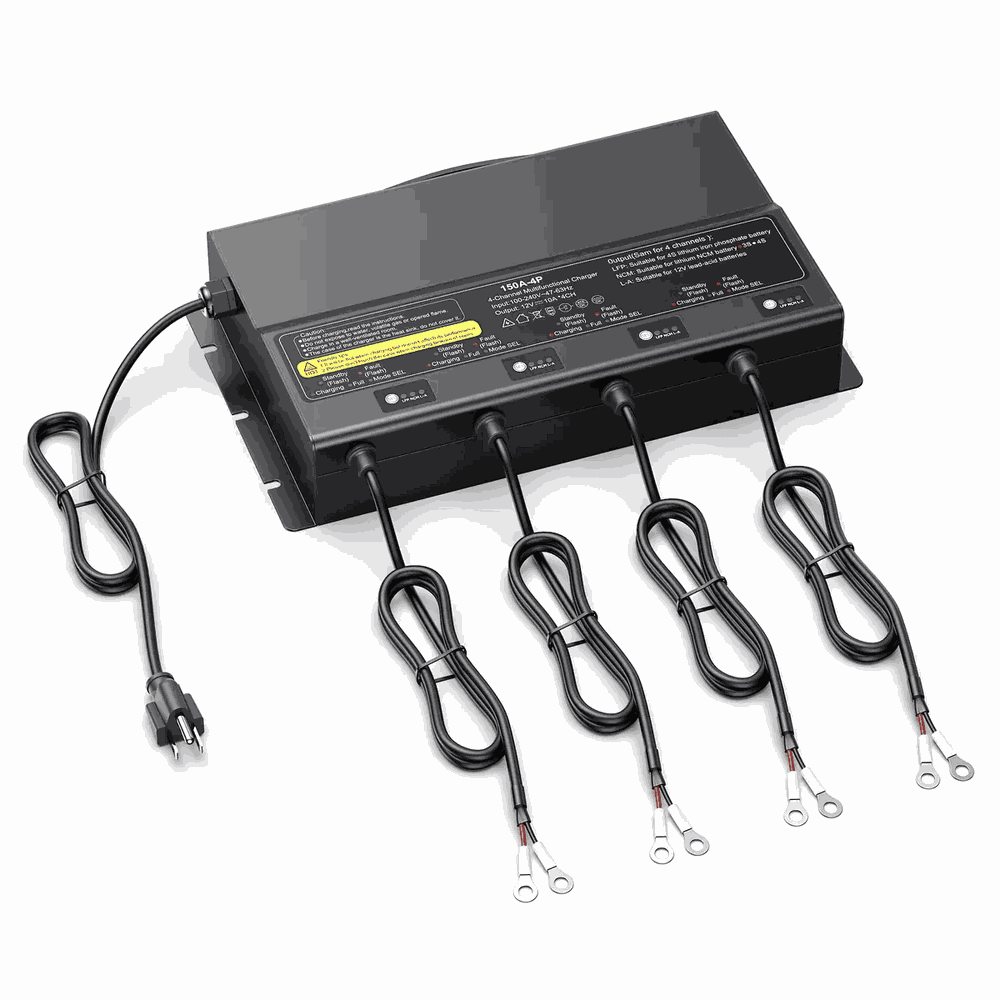

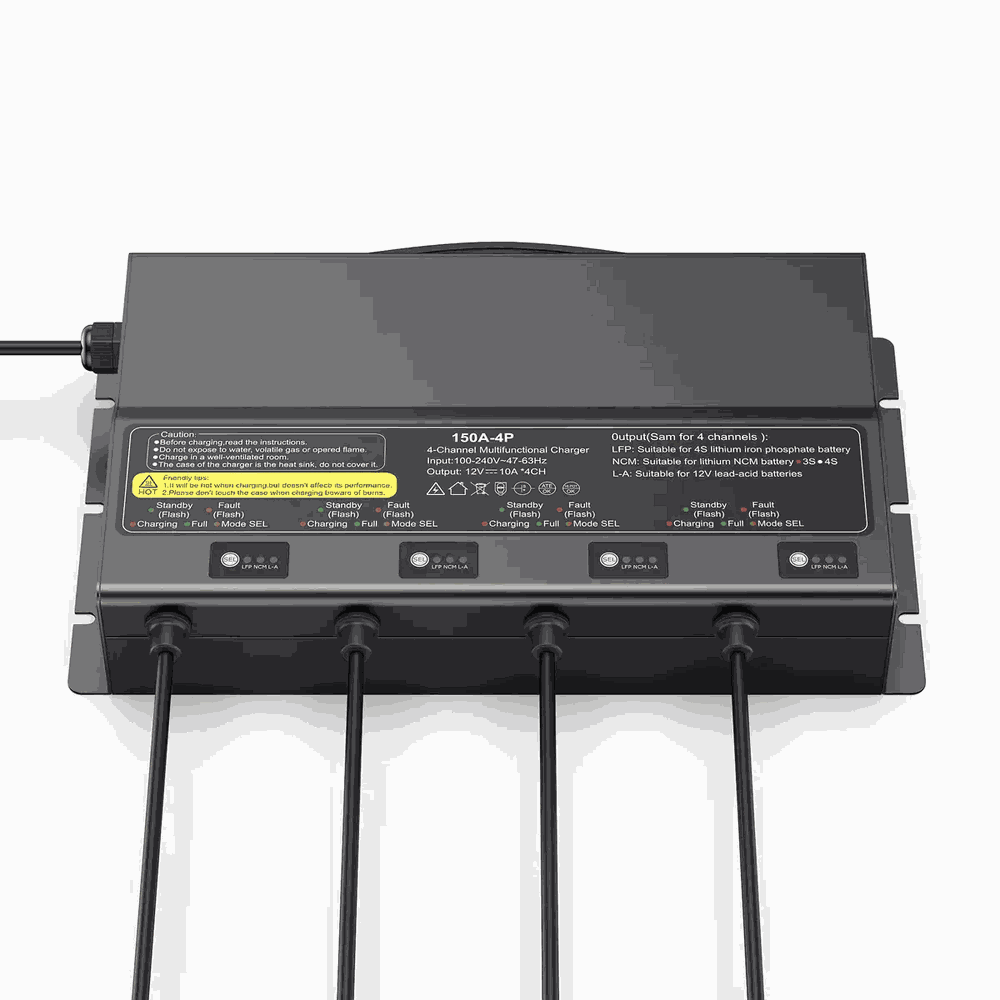

BS150A-1210-4P Series
12V 10A x4 Marine Quad-Channel Battery Charger (480W)
Power480W (120W per channel)
Output12V / 10A x4 Channels
Output Voltage12-14.7Vdc per channel
Channels4 Independent Outputs
Input100-240Vac
Max Input Current5A@220Vac
Efficiency87%
Noise≤45dB
WaterproofIP65
Battery TypesLead-acid, Gel, AGM, Sodium
Dimensions280×160×80mm
Weight3.88 KG
Operating Temp-20~45°C
Storage Temp-40~85°C
Key Features
- 4 Independent Charging Channels - Charge 4 batteries simultaneously without interference
- IP65 Waterproof - Designed for marine environments with salt spray resistance
- 3-colour LED Indicator - Shows charging status for each channel
- Wide Input (100-240Vac) - Compatible worldwide with universal mains
- Over-temperature Protection - Auto shutdown on overheating
- Multi-protection: OTP, Reverse Polarity, Short-circuit, Over-voltage
- Compact design for marine battery bank installations
Applications
Application Scenarios
Marine Multi-Battery Banks
4 independent 12V/10A channels support complex marine battery bank configurations - starting battery, house bank, generator battery, and bow thruster battery all charged simultaneously.
Marine Saltwater Environment
IP65 waterproof and salt-spray resistant design makes it suitable for deck installation on larger yachts, commercial vessels, and fishing boats operating in demanding marine conditions.
Commercial Marine Operations
4-channel design reduces charging infrastructure complexity on commercial fishing vessels, patrol boats, and workboats that operate multiple independent battery systems.
