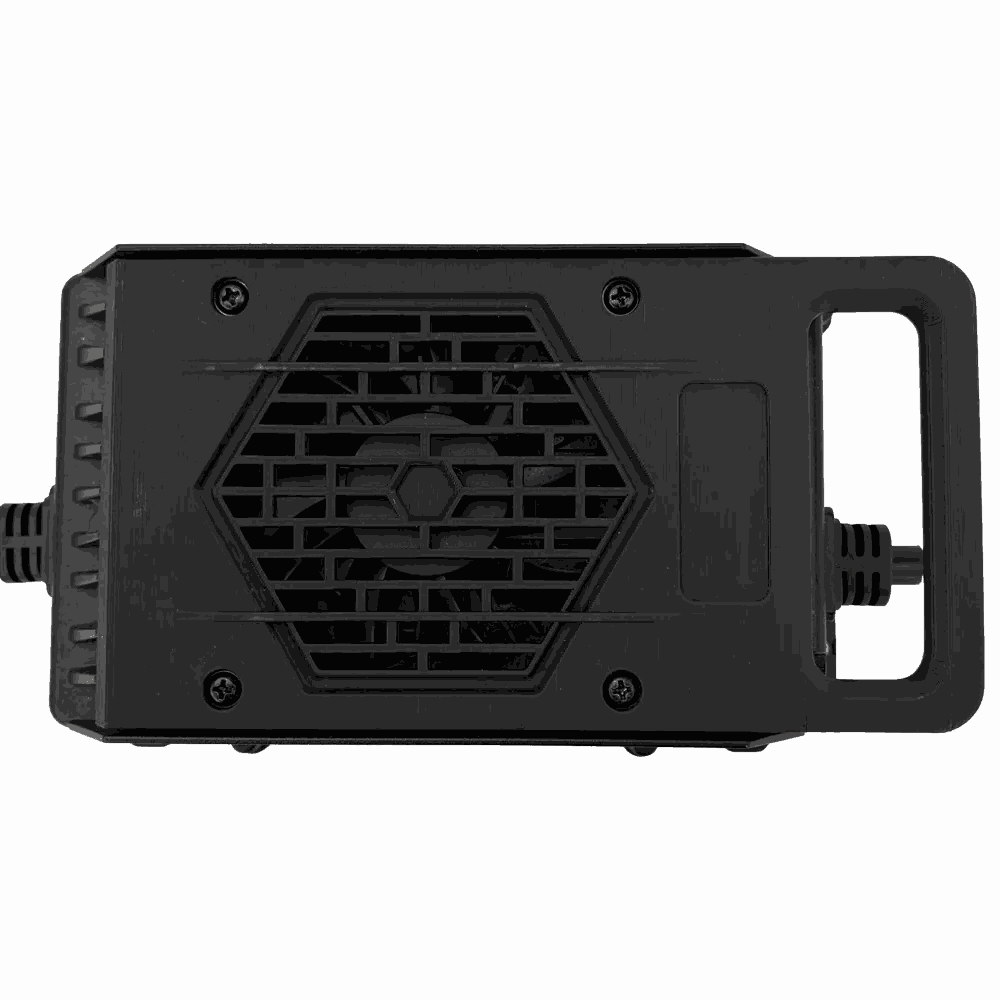

BS1350A-6020
60V 20A Compact IP65 Battery Charger
Purpose-built for 60V electric vehicle and industrial applications, the BS1350A-6020 delivers 20A@220Vac fast charging in an ultra-compact IP65 waterproof body. Its 48–73Vdc wide output voltage range spans the full 60V battery spectrum for LiFePO4, NMC, and lead-acid chemistries. Backed by CAN-bus communication, battery activation, and UL certification, it is the professional choice for electric tricycles, AGVs, golf carts, electric scooters, and marine equipment demanding reliable 60V charging.
Technical Specifications
| Model | BS1350A-6020 |
|---|---|
| Input Voltage | 100~240Vac (Universal) |
| Max Input Current | 5.5A@220Vac / 11A@110Vac |
| Output Voltage Range | 48–73Vdc |
| Max Output Current | 20A@220Vac / 15A@110Vac |
| Shutoff Current | 2A |
| Efficiency | 93% |
| Noise Level | ≤45dB |
| IP Level | IP65 (Dustproof & Waterproof) |
| Certification | UL Certified |
| Communication | CAN-bus |
| Functions | Battery Activation, External 3-colour LED, Charge Interlock |
| Working Temperature | -20°C ~ +50°C |
| Storage Temperature | -40°C ~ +95°C |

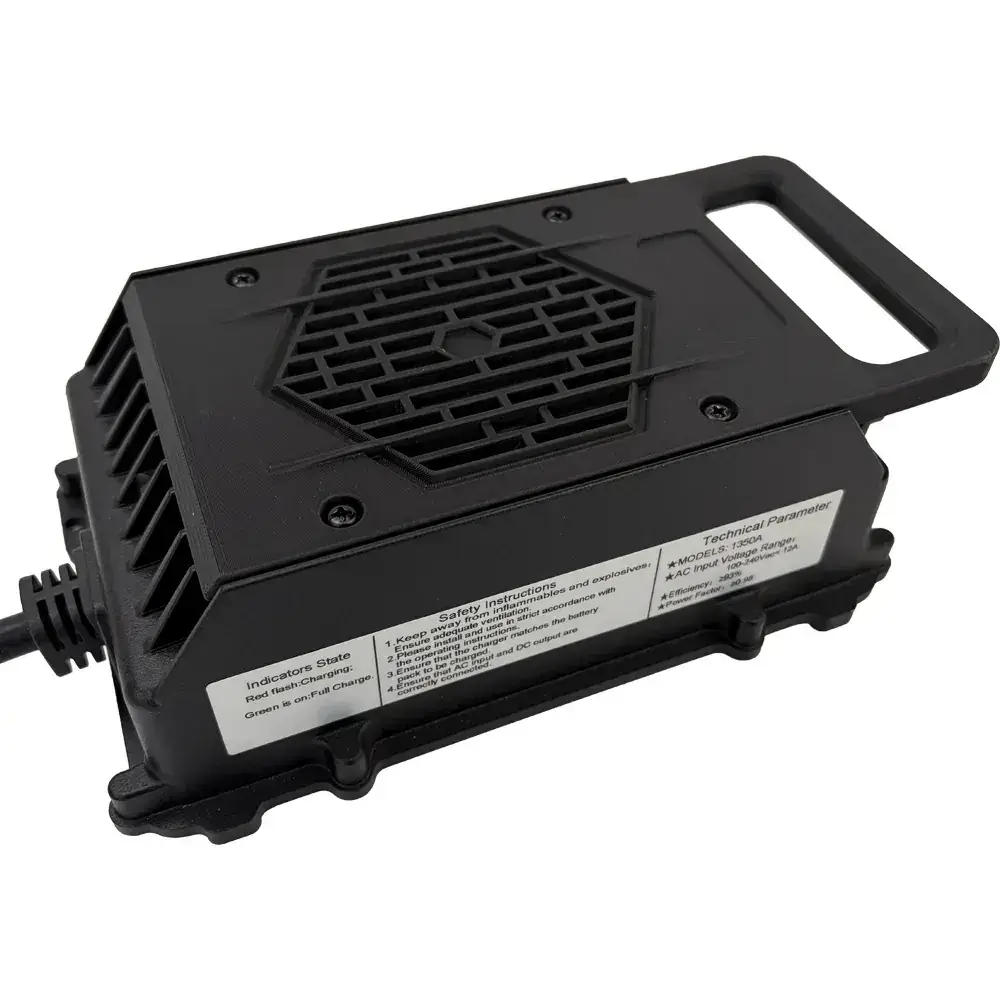

| Dimensions (L×W×H) | 110 × 132 × 68 mm |
| Net Weight | 2.3 KG |
Key Features
20A Fast Charging Output
Delivers 20A@220Vac fast charging — reducing charging time by up to 30% vs. conventional 60V chargers. Designed for commercial vehicles requiring rapid turnaround to maximise daily operational hours.
IP65 Waterproof & Dustproof
Fully sealed housing resists dust ingress and water splashes. Suitable for marine environments, outdoor charging in rain, construction sites, and agricultural operations.
CAN-bus Communication
Real-time BMS integration via CAN-bus protocol enables dynamic charging parameter adjustment, battery health monitoring, and optimised charging curves — extending battery lifespan in 7×24-hour industrial applications.
Battery Activation Function
Identifies and recovers over-discharged batteries that standard chargers cannot detect. Applies a low-current recovery pulse before entering normal CC/CV charging, preventing premature battery replacement.

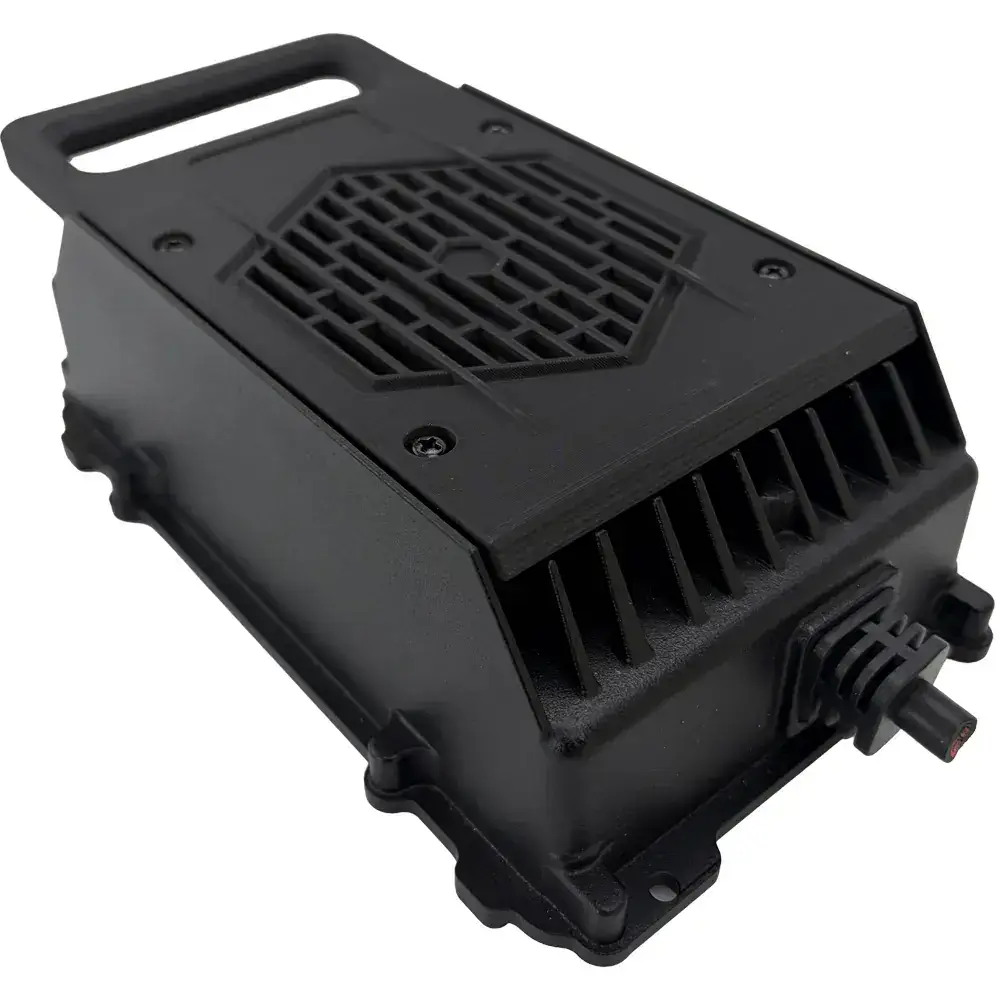

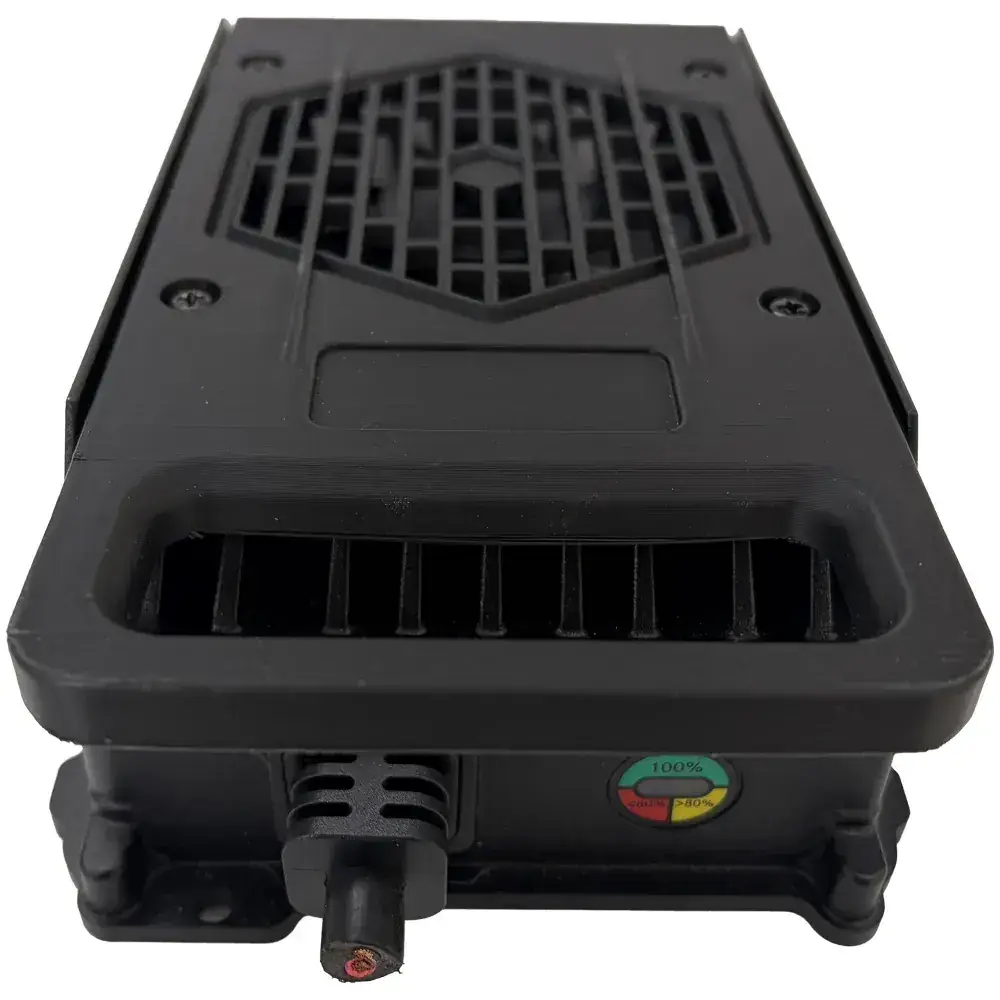

3-Colour LED Status Indicator
External LED provides clear real-time status: Red (Charging) → Green (Full) → Yellow (Fault). Enables instant fleet status checks without physically inspecting each vehicle or opening storage compartments.
UL Certified & 6-Layer Protection
UL 62368-1 certified for North American compliance and global export markets. Six independent protection mechanisms: over-temperature, reverse polarity, short-circuit, no-load, full-charge auto-shutdown, and input voltage monitoring.
Wide Voltage Range: 48–73Vdc
Covers the complete 60V battery ecosystem — LiFePO4 (48–58V range), NMC (48–67V range), and lead-acid (60V nominal, ~73V peak). One charger supports all common 60V battery chemistries.
Ultra-Compact Design
110×132×68mm compact body and 2.3KG lightweight construction installs in tight vehicle compartments, saddle bags, and OEM charging bays. UL 94V-0 flame-retardant housing meets strict industrial fire safety requirements.
Protection Functions
When internal temperature exceeds the preset value, charging current automatically decreases. If ambient temperature exceeds 65°C, the charger shuts down and resumes automatically when temperature returns to normal.
If the battery is connected in reverse, the internal circuit disconnects from the battery, preventing damage to both the charger and the battery system.
No output when no battery is connected, preventing energy waste and eliminating idle hazards at unattended charging stations.
When the output is short-circuited, the internal circuit immediately disconnects from the battery. Charging can only resume after the fault is cleared and the battery is reconnected.
Charger automatically shuts down when the battery is fully charged (2A shutoff current), preventing overcharging and extending battery cycle life for long-term use.
Continuous under-voltage and over-voltage protection ensures stable, safe charging in regions with unstable power grids or fluctuating industrial power supplies.
Application Tags
Application Scenarios
Commercial Delivery & Utility Vehicles
60V electric tricycles are the backbone of urban logistics, delivery fleets, and rural transport, handling heavy loads (up to 300kg) with a typical range of 50–100km. The BS1350A-6020's 20A high current rapidly charges large-capacity batteries (20–40Ah), reducing downtime by 40% compared to 10A chargers — critical for delivery drivers needing all-day operation. Its IP65 dustproof and waterproof rating shields against rain, dust, and road debris, while the sixfold safety protection system prevents damage from rough handling or incorrect wiring.
60V low-speed electric four-wheelers, widely used in resorts, industrial parks, and retirement communities, benefit from the ≤45dB ultra-low noise operation and compact 110×132×68mm form factor that fits seamlessly into vehicle storage compartments. The external 3-colour LED indicator allows staff to quickly monitor charging status for efficient fleet management.
Industrial & Material Handling Equipment
In warehouses, factories, and logistics centers, 60V AGVs and electric forklifts rely on consistent charging to support continuous operations. The BS1350A-6020's wide working temperature range (-20~50°C) ensures stable performance in cold warehouses or hot industrial environments. Its 20A high current reduces charging time by 35%, minimising equipment downtime and boosting productivity. The CAN-bus communication and battery activation functions sync with the vehicle's BMS, optimising charging parameters for 7×24-hour industrial use — while UL certification meets strict industrial safety standards.
For 60V industrial robotics, cordless power tools, and specialised equipment, the precise CC/CV charging curve protects sensitive battery systems and extends their lifespan. The 2A shutoff current ensures safe trickle charging, while over-voltage/under-voltage protection adapts to fluctuating industrial power grids.
Recreational & Mobility Vehicles
60V electric scooters and performance e-bikes offer faster speeds and stronger hill-climbing power compared to 48V models. The BS1350A-6020's fast charging (20A@220Vac) replenishes battery power in just 2–3 hours, perfect for busy commuters or adventure seekers. Its compact, lightweight design (2.3KG) fits into backpacks or storage compartments, while global voltage compatibility (100~240Vac) ensures use in any country. The full charge auto-shutdown prevents overcharging for daily use.
For 60V mobility scooters and electric wheelchairs, safety and reliability are paramount. The UL certification and comprehensive protection system (reverse polarity, short-circuit, no-load protection) provide peace of mind, while the IP65 rating allows safe indoor/outdoor use with gentle charging curves that protect sensitive mobility battery systems.
Leisure & Marine Applications
60V battery systems are increasingly used in electric boats, fishing boats, and outboard motors. The BS1350A-6020's IP65 waterproof rating resists moisture and splashes, making it fully suited for marine environments. Its 20A high current efficiently charges large-capacity marine batteries, providing 6–8 hours of continuous power for trolling motors or leisure cruises. Over-temperature protection (shuts down at 65°C) adapts to hot outdoor conditions, while short-circuit protection ensures safety in wet environments.
60V golf carts and off-road UTVs also benefit from the rugged IP65 protection against dust, mud, and rain on golf courses or off-road trails. The ≤45dB low noise operation preserves the quiet ambiance of golf courses, while the charge interlock function prevents sparking during plug-in/plug-out — a critical safety feature for outdoor recreational use.
